Image Optimization

Image optimization is the process of reducing the number of bytes that represent an image. The smaller the image size, the faster it will load on a page. The smaller the image size, the less bandwidth it consumes. The less bandwidth it consumes, the better the experience for your users especially on mobile networks.

Responsive Images

Qwik supports responsive images.

This is a built-in feature that relies on the vite-imagetools module, so no additional packages or components need to be installed.

How it works

• Import any image from the src folder
• The image is converted in several webp images, one for each breakpoint (200px, 400px, 600px, 800px, 1200px)
• The image is processed and optimized to reduce its size
• An <img> element is rendered, using the srcset attribute to set the image source for several resolutions
• Now the browser will load the most suitable image for the resolution in use

Key Points

The community and the Qwik team love this API for a number of reasons:

• Zero runtime, zero JS
• Zero props by default, simple API
• Zero 404, strongly typed API
• Zero layout reflows (Automatic width/height)
• Hashed images, immutable cached
• Automatic .webp / .avif format optimization
• Automated srcSet generation
• Extendable (use any <img> attribute)
• Loading lazy and async decoding by default
• Lightweight, a single <img> node in the HTML

Usage

Add the ?jsx suffix at the end of the import

import Image from '[IMAGE_PATH]?w=24&h=24&jsx';

Use the image in the template as a component:

<Image />

Result

This script will generate the following <img> element with the following optimizations:

• Quality = 75
• Format = .webp

<img

  decoding="async"
  loading="lazy"
  srcset="
    /@imagetools/141464b77ebd76570693f2e1a6b0364f4b4feea7 200w,
    /@imagetools/e70ec011d10add2ba28f9c6973b7dc0f11894307 400w,
    /@imagetools/1f0dd65f511ffd34415a391bf350e7934ce496a1 600w,
    /@imagetools/493154354e7e89c3f639c751e934d1be4fc05827 800w,
    /@imagetools/324867f8f1af03474a17a9d19035e28a4c241aa1 1200w"
  width="1200"
  height="1200"
>

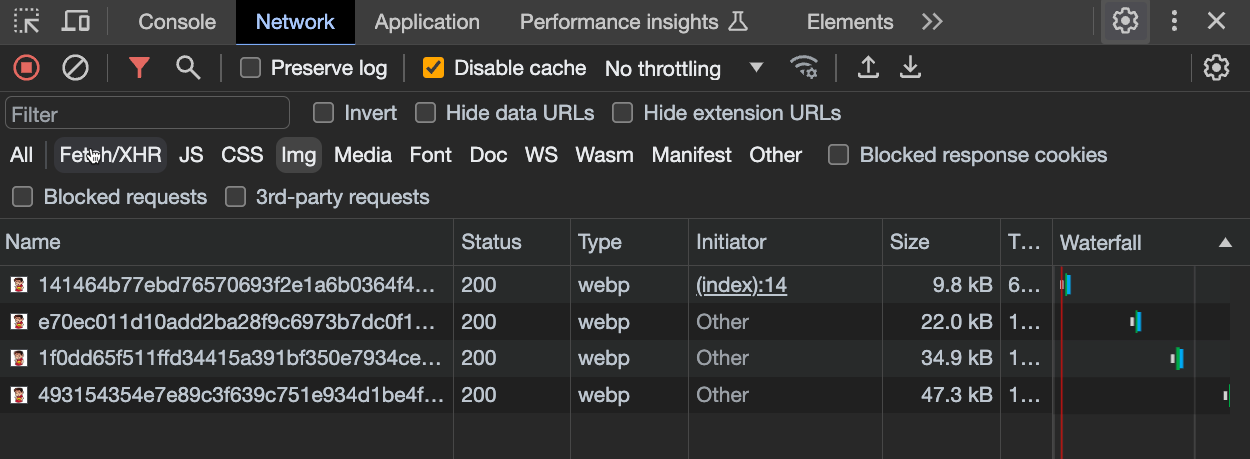

Thanks to srcset attribute the browser will load the most suitable image for the device's resolution:

Example

import { component$ } from '@qwik.dev/core';
import Image from '~/media/your_image.png?jsx';

export default component$(() => {
  return (
    <div>
      <Image />
    </div>
  );
});

Customize image format

Images are automatically converted to .webp format, but you can also specify the format manually: Available formats:

Supported file formats to be converted are:

In the below example, a jpg image is converted to a png format:

import { component$ } from '@qwik.dev/core';
import Image from '~/media/your_image.jpg?format=png&jsx';

export default component$(() => {
  return (
    <div>
      <Image />
    </div>
  );
});

Customize image quality

As noted above, the default quality is set to 75, but you can also specify the quality manually.

Quality parameter is an integer between 1 and 100.

import { component$ } from '@qwik.dev/core';
import Image from '~/media/your_image.png?quality=100&jsx';

export default component$(() => {
  return (
    <div>
      <Image />
    </div>
  );
});


Customize image width and height

You may need to set a custom width to the image:

<Image style={{ width: '300px'}} />

but in that case you need to manually specify the height as well to avoid it being stretched:

<Image style={{ width: '300px', height: '200px'}} />

Below you can see a simple trick to avoid having to manually set the height, while also maintaining the aspect ratio:

import { component$ } from '@qwik.dev/core';
import Image from '~/media/emote.png?jsx';

export default component$(() => {
  return (
    <>
      <h1>Image Example</h1>
      <div class="image-wrapper" >
        <Image />
      </div>
    </>
  );
});

.image-wrapper {
  width: 300px; /* Set the desired width of the wrapper */
  position: relative; /* Required for absolute positioning */
}

.image-wrapper img {
  width: 100%; /* Make the image fill the width of its container */
  height: auto; /* Let the browser calculate the height to maintain aspect ratio */
  display: block; /* Remove any extra white space below the image */
}

Image Optimization for SVGs

SVGs can be added directly to your JSX code, but you can also use the image optimization approach to optimize them:

import { component$ } from '@qwik.dev/core';
import SvgImage from '~/media/your_image.svg?jsx';

export default component$(() => {
  return (
    <>
      <h1>Image Example</h1>
      <div class="image-wrapper" >
        <SvgImage />
      </div>
    </>
  );
});

@unpic/qwik

• Site with detailed instructions on usage: @unpic/qwik
• Installation: add @unpic/qwik dependency

Unpic is a third-party image optimization library that works with existing image optimization CDNs. It provides an Image component that can be used to optimize images.

import { component$ } from '@qwik.dev/core';
import { Image } from '@unpic/qwik';

export default component$(() => {
  return (
    <Image
      src="https://cdn.shopify.com/static/sample-images/bath_grande_crop_center.jpeg"
      layout="constrained"
      width={800}
      height={600}
      alt="A lovely bath"
    />
  );
});

qwik-image

Performant images with automatic optimization.

pnpm install qwik-image

npm install qwik-image

yarn add qwik-image

bun install qwik-image

import { $, component$ } from '@qwik.dev/core';
import {
  Image,
  type ImageTransformerProps,
  useImageProvider,
} from 'qwik-image';

export default component$(() => {
  const imageTransformer$ = $(
    ({ src, width, height }: ImageTransformerProps): string => {
      // Here you can set your favorite image loaders service
      return `https://cdn.builder.io/api/v1/${src}?height=${height}&width=${width}&format=webp&fit=fill`;
    }
  );

  // Global Provider (required)
  useImageProvider({
    // You can set this prop to overwrite default values [3840, 1920, 1280, 960, 640]
    resolutions: [640],
    imageTransformer$,
  });

  return (
    <Image
      layout="constrained"
      objectFit="fill"
      width={400}
      height={500}
      alt="Tropical paradise"
      placeholder="#e6e6e6"
      src={
        'image/assets%2FYJIGb4i01jvw0SRdL5Bt%2Fe5113e1c02db40e5bac75146fa46386f'
      }
    />
  );
});

Here is the Github repository with detailed instructions on usage and customizations: qwikifiers/qwik-image
